High Level Empty Can/ Bottle/ Carton Gantry Palletizer

Short Description:

Lilanpack provides intelligent automatic empty can/bottle palletizing machine for Food, Water, Beverage, Seasoner, Daily chemistry Products. The complete system is customized according to your packing/palletizing process requirements. Automatically loading cans/bottles to pallets, heap up the cans/bottles on the pallet in certain order, which is to improve your empty can/bottle production line efficiency.

Send email to us

Product Detail

Product Tags

This automatic empty can/bottle palletizing machine is designed according to customer packing requirements (customer’s can/bottle size, cans/bottles combination on the pallet, production speed, interlayer sheet type, top cap type and material, pallet dimension height). According to different packing requirements, we design different type of palletizing system, high level type, low level type, gantry type, single column type and so on; support customized loading gripper (magnetic gripper, sucking gripper, and air bag gripper, and mechanical clip type gripper), packing speed is also customized.

High-Level-Empty-CanBottleCarton-Gantry-Palletizer-3

High-Level-Empty-CanBottleCarton-Gantry-Palletizer-4

Work flow

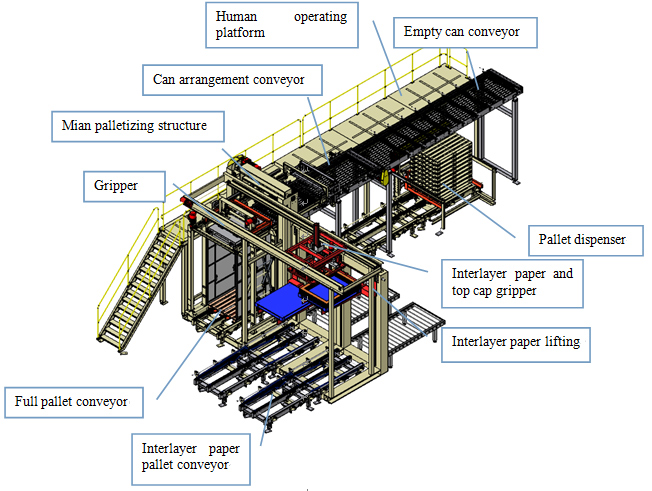

During the production, empty can be transported by conveyor to the can arrangement system, the arrangement system will arrange cans in a certain order, after arrangement, the gripper will catch the complete layer of the cans and move to the pallet, and the interlayer gripper will suck one piece of interlayer paper and put it on the complete layer of cans; repeat about actions until the complete pallet is finished.

Electrical Configuration

PLC	Siemens
Frequency Converter	Danfoss
Photoelectricity Inductor	SICK
Driving Motor	SEW/OMATE/EVERGEAR
Pneumatic Components	FESTO
LOW-voltage Apparatus	Schneider
Touch Screen	Schneider
Servo	Panasonic/SIEMENS/INOVANCE

Technical Parameter

Stack Speed	400/600/800/1200 bottles/cans per minute
Max. carrying capacity /layer	150Kg
Max. carrying capacity /pallet	Max 1500kG
Max. stack height	2600mm (Customized)
Installation Power	18KW
Air Pressure	≥0.6MPa
Power	380V.50Hz , three-phase +ground wire
Consumption of the Air	800L/Min
Size of the Pallet	According to customer requirement
